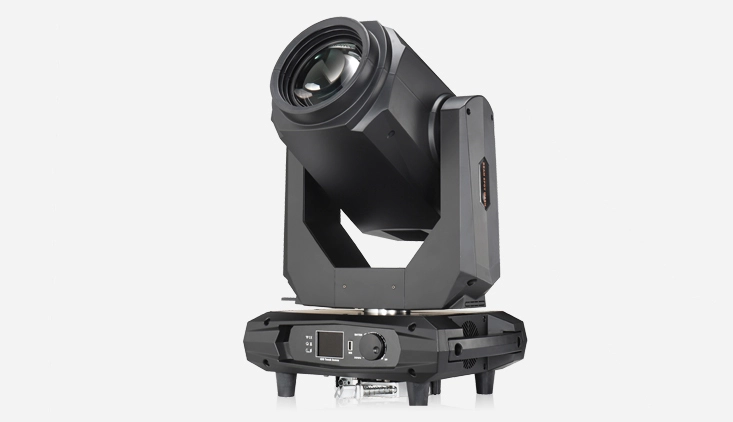

Moving Head Computer Light (3 in 1) VSL380BSW-H01

Input voltage: Power supply: AC100-240V 50/60Hz 600W with PFC switching power supply

Total power: 600W

Light source: OSRAM SIRIUS HRI 371W S

Color temperature: 7650K

Color: 13 colors + white light; rainbow color can be realized;

Rotating pattern: 1 rotating pattern plate, with 7 pattern pieces + white light, pattern pieces can be quickly disassembled and assembled, variable speed shaking, interchangeable rotating pattern pieces can achieve self-rotation, water flow, and shaking effects; the pattern can be positioned at any angle;

Fixed pattern plate: 1 metal pattern piece with 11 patterns + white light

Dynamic effect plate: 1 dynamic effect wheel with bidirectional water flow; with linear 3200K-4700KCTO + white light

All three pattern positionings are imaged

Prism: 1 self-spinning octagonal prism can rotate in both directions, 1 8+16 double-layer prism can rotate in both directions, the double prisms can be superimposed and magnified.

Focus: electric zoom; zoom can focus automatically

Zoom range:

Fixed pattern magnification range 3.8°-31°

Rotating pattern magnification range 6.7°-50°

Coloring angle: 6.8°-50°

Dimming: mechanical linear dimming 0-100%;

Strobe: fast strobe, double-chip mechanical strobe, multiple strobe mode selection,

Pulse, asynchronous, synchronous, random;

Adjustable speed (strobe closes the light for 5 seconds, the bulb power changes to power saving mode)

14. Atomization: independent atomization soft light effect;

15. Heat dissipation: air-cooled forced heat dissipation

Intelligent fan speed regulation, fan stops, bulb automatically extinguishes the cannon for protection

When the light is closed, the power is automatically reduced, energy saving and environmental protection

Protection Protection: automatic high temperature protection

Display: 16 million colors 3.5-inch LCD touch screen; Chinese/English two languages can be switched,

Built-in continuous cycle rechargeable battery, can operate LCD interface to set function data without connecting to power supply. Automatically reverse 180° display; touch/button two operation modes

Control mode: Communication protocol: standard DMX512 protocol, RDM, Ethernet network interface (optional), support Art-NET protocol (optional).

Control channel: 20CH

Motor: XY axis three-phase motor drive

Lamp body rotation angle: horizontal 540°, vertical 270°; horizontal or vertical electro-optical reset system

Product weight: 23.5KG

Product size: 42*30*65CM

IP protection level: IP20
