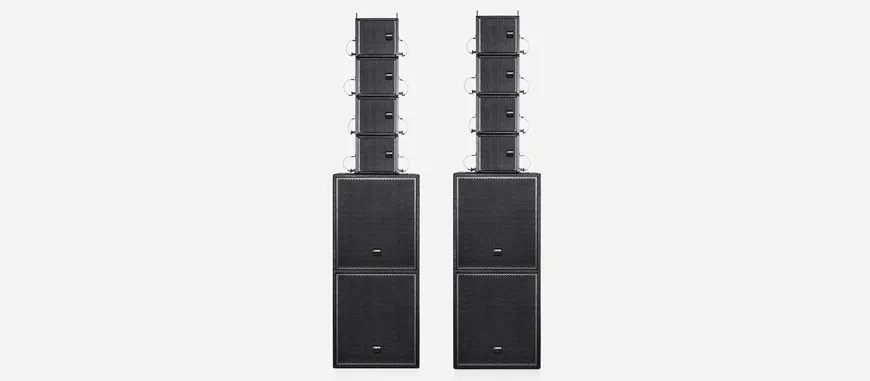

Active Line Array loudspeaker LA1426A

● This system is a mini line array system with high power and high sound pressure level;

● The box body is made of special plywood for seagoing ships, which is highly reliable, and all metal accessories are made of high-quality aluminum alloy;

● Powered by high peak power switching power supply, Class-D independent power amplifier;

● Excellent mobile application.


Get Quotation
DETAILS
SPECS

Specifications of Active Line Array loudspeaker


Model

LA1426A

Unit

6.5" Bass×2, 1.75" Treble×1

Frequency Range

150 Hz -20kHz

Sensitivity (1m, 1W)

95±2dB

Max SPL

118±2dB

Input Impedance

20kΩ

Amplifier Rated Power

500W

Amplifier Input Sensitivity

0.775V

Directivity (H×V)

100°×5°-20° ((Depending on the number of arrays))

Amplifier Distortion

＜0.05%

Work Voltage

AC190V-240V/50Hz

Color

Black

Dimension

573×360×192mm

Weight

13kg
