Professional Sound System Solutions for Auditoriums LA1420+LA1420S

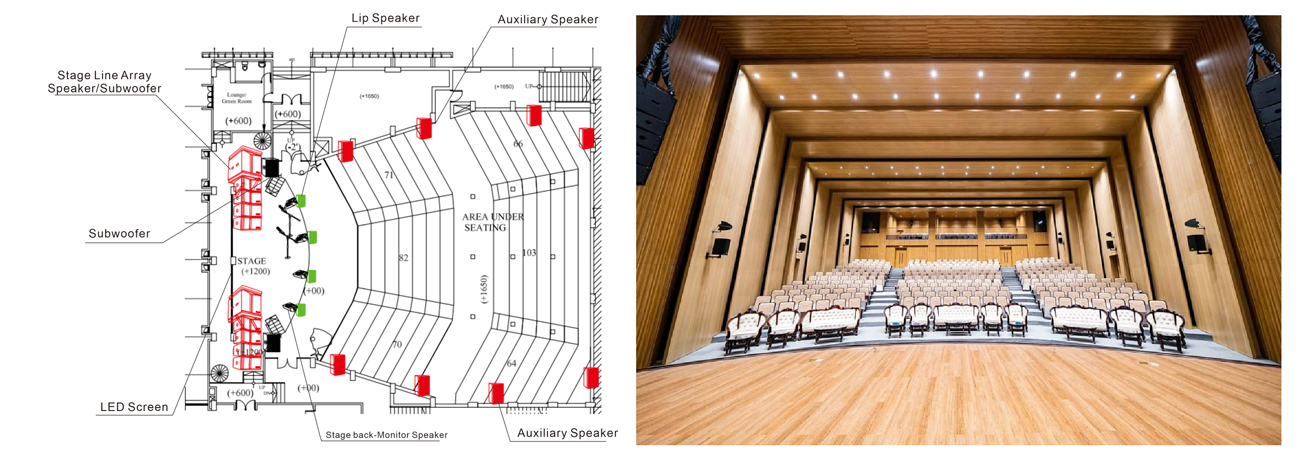

 Solution Configuration List + System Diagram

  Solution Configuration

• Audio pickup section: True diversity wireless handheld microphones are selected to ensure clear communication for leaders’ speeches. To prevent issues such as signal dropouts and interference, an antenna amplification system is also incorporated.

• Control section: A digital mixing console, digital audio matrix, and feedback suppressor are utilized to manage the entire system, delivering clear, distortion-free sound without feedback and whistling. The system also offers various sound effects processing functions to further enhance the audio experience.

• Sound reproduction system: Highly directional dual 10” linear arrays are employed for distributed sound amplification. These arrays not only provide high sound pressure levels but also allow vertical angle adjustments based on the listening area. Each set is paired with a single 18” subwoofer to compensate for the lower limits of mid-bass frequencies. Additionally, four stage monitor speakers and four lip speakers are provided to fill sound gaps for the stage and front-row audience. Two floor-standing subwoofers offer extra low-frequency energy, improve low-frequency response and enhance the depth of the sound quality, creating a more refined audio experience. 250W constant impedance speakers are used to reinforce sound in the center area, ensuring even sound pressure distribution and fulfilling both aesthetic and functional requirements of the auditorium.

• System protection: To ensure the safety and reliability of the system, especially in the event of unexpected situations, a power sequence controller and purification system are used to protect the equipment from potential damage.

 LA1420 LA1420S Professional Line Array Speaker System

• The LA1420 array speaker features 2×10" bass drivers and 2×1.75" treble drivers with a rated output of 650W, paired with a powerful 18" subwoofer (LA1420S) to form a professional line array speaker system, delivering best-in-class sound pressure levels of up to 128dB SPL. With an impressive 120° horizontal and 10° vertical coverage, the LA1420 ensures clear, high-quality sound across a wide area.

• The LA passive compact linear array system offers exceptional performance and straightforward installation, allowing for flexible configuration to suit diverse acoustic amplification needs.

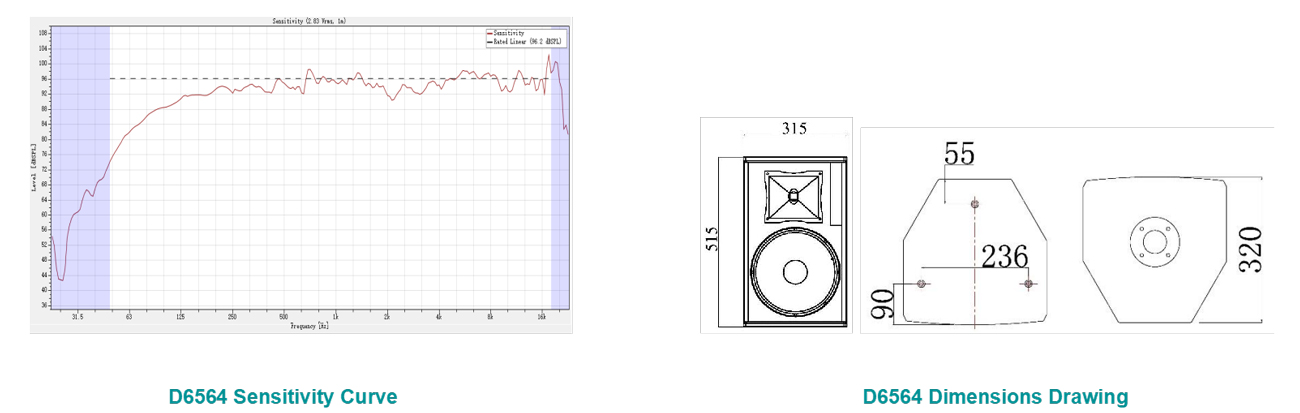

 D6564 Professional Conference Speaker

• Phase-inverted bass-reflex two-way full-range system.

• The wooden speaker enclosure is coated with black speckled water-based paint, with acoustic sound-penetrating cotton attached to the back of the perforated metal mesh.

• With high-efficient and high-quality units, it can be suspended for installation.

• Speaker unit: 10" woofer ×1, 1" tweeter ×1; Rated power: 250W.

• Dimensions (H×W×D): 515×315×287mm; Weight: 14.6kg.

• The two-way full-range speaker delivers a more balanced sound, offering better reproduction of musical details and expression, providing a more comfortable listening experience.

• It is suitable for a variety of places such as professional performance venues, various conference settings, mobile performances, plazas, and shopping malls.

  D6642H/D6643H/D6644H 8/12/16-Channel Digital Audio Processor

• This sophisticated audio processing device offers 8/12/16-input and 8/12/16-output analog channels, along with 1 USB streaming channel. It incorporates a variety of noise reduction and sound optimization technologies, making it ideal for large venues and ensuring clear, natural sound. Its intuitive interface and responsive controls simplify setup and adjustments, while its compatibility with a wide range of devices meets the diverse demands of modern sound reinforcement systems.

• The 2K HD seamless matrix system is a high-performance intelligent switching device designed for seamless audio and video signal switching. It supports multiple input and output signals, ensuring smooth transitions and blending, while delivering clear and uninterrupted video quality.

 Application Scenarios

The DSPPA professional sound system provides efficient and stable sound distribution, ensuring that every participant in large events or venues can hear clearly. With exceptional sound quality and reliability, it is suitable for use in places such as conference halls, multi-purpose halls, lecture halls, concert halls, and churches.
