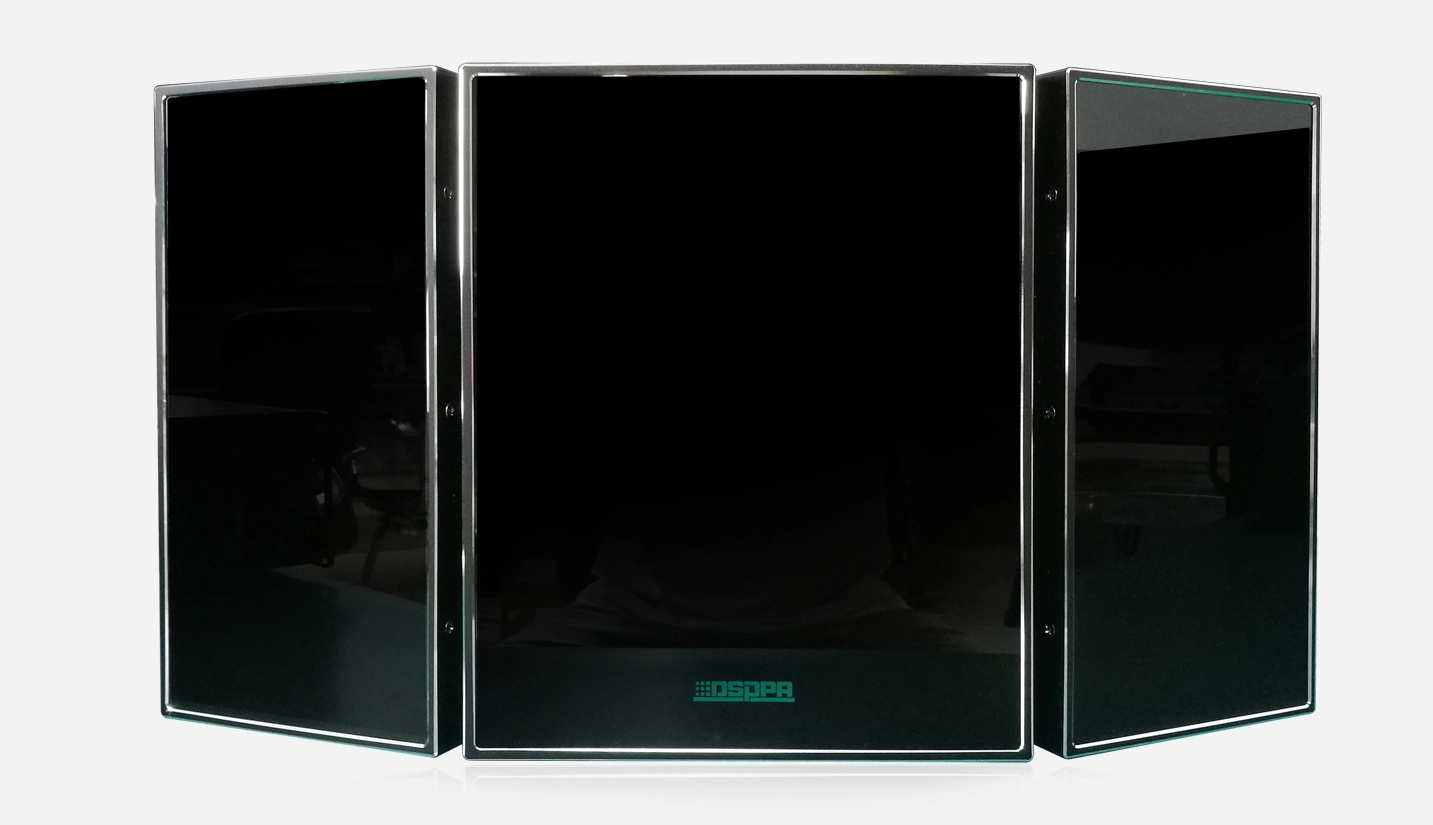

IR Radiator Panel D6394

  • The radiation panel can be connected hand in hand to enhance the coverage

  • Adopt foldable design, can flexibly adjust the launch Angle

  • With delay gear adjustment, to ensure that the signal is correctly superimposed transmission

  • It can be fixed (equipped with universal support) or installed with triangular support

  • Super launching ability, the distance of a single machine can reach 30 meters

  • Coaxial line with host RF signal 150m

Datasheet
Get Quotation
DETAILS
SPECS

The D6394 is a Infrared Radiation Panel of Digital Infrared Interpretation System. It supports a fully digital design to ensure audio quality and strong confidentiality. It is used in International conference widely to provide convenience to the progress of communication.

Model

D6394

Semistrong angle

± 22°

Radiation distance

＜30M/16CH

Total peak intensity

24 W/sr

Standby power consumption

25W

Power consumption

30W

Power input

AC110V-220V~ 50Hz-60Hz

Product dimension

430×235×86mm

Package dimension

504×494×155mm

Net weight

3kg

Gross weight

4.5kg
