Digital Ceiling Array Microphone D5863

Digital array microphone with an 8-meter long-distance pickup capability.
Innovative multi-level cascading, supporting up to 4 units in series.
Standard USB (Type-C) and 3.5mm audio interfaces for plug-and-play operation, with no need for professional tuning.
POE interface, supporting remote power supply and data transmission.
Feature intelligent noise reduction, echo cancellation, reverberation suppression, and full-duplex communication.
Support intelligent voice tracking and adaptive sound field environment.

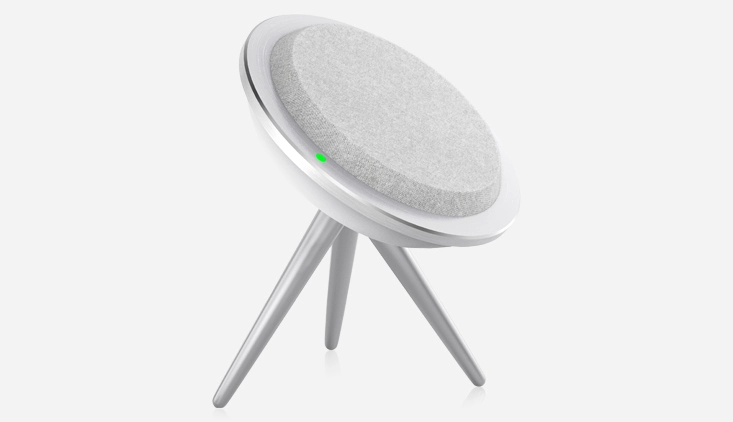

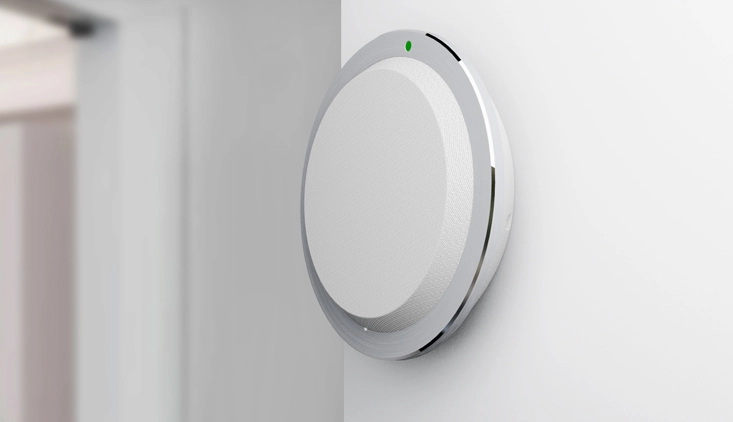

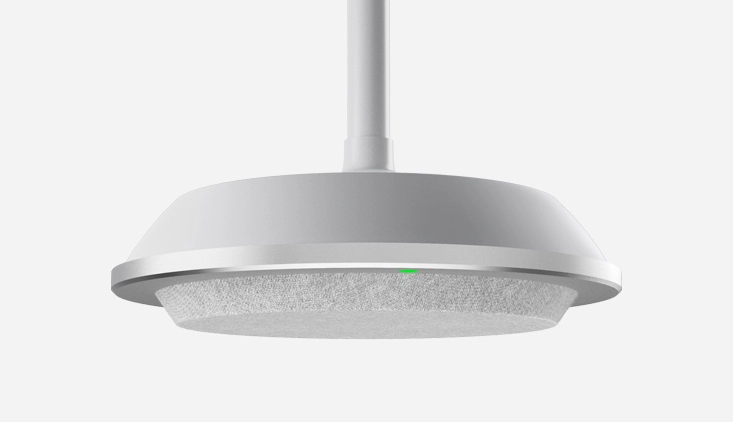

Suitable for ceiling, wall, and desktop installations.
Crafted with aluminum alloy and a fabric-covered design, offering a refined and durable appearance.

Get Quotation

DETAILS

SPECS

Digital Ceiling Array Microphone D5863

The D5863 digital array microphone is a high-performance audio pickup device designed with an embedded architecture. It supports beamforming and professional digital audio processing technologies, offering an 8-meter long-distance pickup capability with voice auto-tracking and full-duplex interaction. With its compact and elegant design, the microphone features a 32kHz wide-band sampling rate and integrates intelligent audio algorithms such as automatic noise reduction, echo cancellation, and automatic gain control, effectively eliminating noise and echoes, suppressing reverberation, and ensuring minimal acoustic environment requirements. The device is plug-and-play, requiring no additional configuration or debugging, making it simple and convenient to use. Equipped with industry-leading de-reverberation technology, the microphone performs exceptionally well in complex acoustic environments such as large conference rooms, classrooms, and lecture halls, delivering clear and superior audio pickup. The device supports cascading up to 4 units, covering spaces ranging from 100 to 500 square meters. It offers flexible installation options, including ceiling suspension, wall mounting, and desktop placement. Whether for video conferencing, presentations, or educational training, the microphone enables rapid deployment and efficient audio pickup across diverse scenarios.

Specifications of Digital Ceiling Array Microphone

Model	D5863
Digital Array Microphone
Microphone Type	Omnidirectional microphone
Microphone Array	Built-in 10-microphone array, 360-degree omnidirectional pickup
Pickup Distance	8m clear pickup
3A Algorithm	AEC/ANS/AGC
Sensitivity	-26dB FS
S/N Ratio	>80dB (A)
Frequency Response	20Hz-16kHz
Sampling Rate	32K sampling rate, high-definition wideband audio
USB Protocol	Support UAC

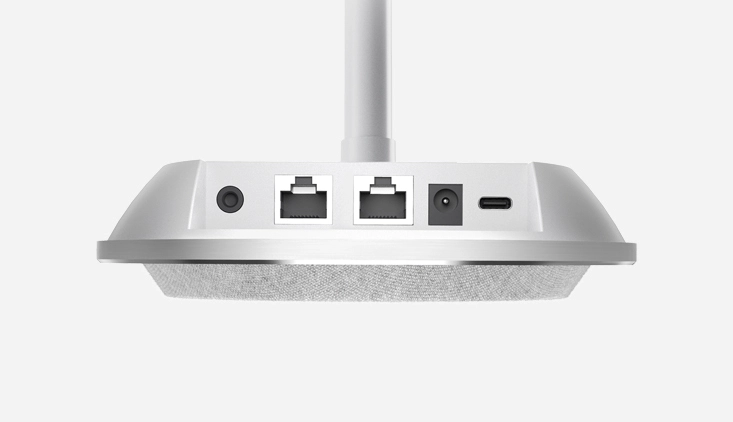

Hardware Interface	1×3.5mm audio interface, 1×USB Type-C interface, 2×RJ45 network interfaces, 1×DC12V power interface
Power Supply	Adapter DC12V/1A or USB (Type-C) 5V/2A
Cascading Method	PoE powered
Product Dimensions	156mm156mm40mm
Inner Box Dimensions	217195127mm (1 pc)
Outer Box Dimensions	495420228mm (6 pcs)
Net Weight	250g
Gross Weight	920g
Mixer
Audio	Support dual-channel 2-level cascading transmission, that is, cascading 2 devices per interface.
Hardware Interface	2×3.5mm audio interfaces, 1×USB interface, 2×network interfaces, 1×power interface
Power Supply	Adapter DC12V/2A
Cascading Method	PoE powered
Product Dimensions	114.54mm114.54mm22.60mm
Inner Box Dimensions	217195127mm (1 pc)
Outer Box Dimensions	495420228mm (6 pcs)
Net Weight	243g
Gross Weight	715g
Hub
Audio	Support long-distance audio network transmission
Hardware Interface	2×AV audio interfaces, 1×USB interface, 1×network interface, 1×power interface
Power Supply	Adapter DC12V/1A
Product Dimensions	114.54mm114.54mm22.60mm
Inner Box Dimensions	217195127mm (1 pc)
Outer Box Dimensions	495420228mm (6 pcs)
Net Weight	243g
Gross Weight	715g
