audio video high grade cable 100 meters 1
audio video high grade cable 100 meters 1
  • audio video high grade cable 100 meters 1

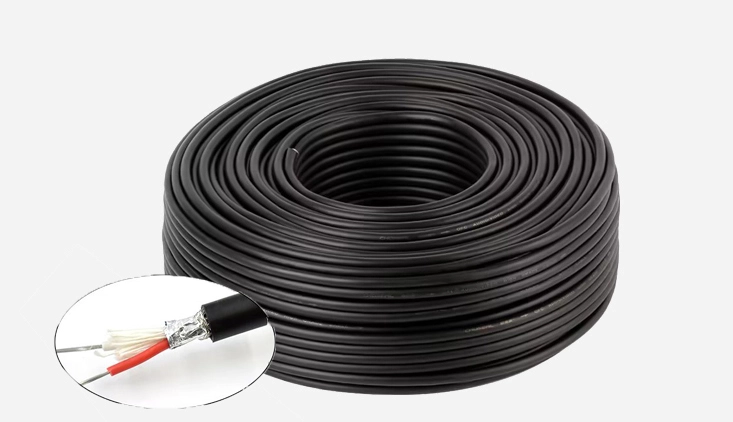

2X0.5m² OFC Audio/Video High Grade Cable (100 Meters) D2X05

Get Quotation
DETAILS
SPECS

Easy to transmit good sound, used in audio, speakers, amplifiers, mixers and other equipment cables to transmit audio signals.

Specifications of 2X0.5m² OFC Audio/Video High-Grade Cable (100 Meters)


Product Model

Audio Cable 2x0.5mm²

Conductor

Tinned Copper, Maximum Single Strand Diameter 0.21mm

Max. Conductor Resistance Ω/KM (20°C): 40.1

40.1

Insulation Thickness

0.35mm

Core Wire Color & ID

Red, White (PVC-45P Material)

Insulation Material

(PVC-45P Material)

Twisting

Two Cores Twisted with Cotton Yarn

Shielding

Aluminum Foil (Conductive Layer Facing Outward)

Braiding

128 Strands, Tinned Copper

Outer Jacket

Black (PVC-100P)

Outer Diameter (OD)

6.2±0.2mm (Semi-extruded)

Sheath Thickness

AV: 0.8mm，MIN: 0.58mm

Rated Voltage

300/300V

Processing Method & Usage

Cable for Connection, Crimp Terminal

Weight（100 meters）

5.5KG
