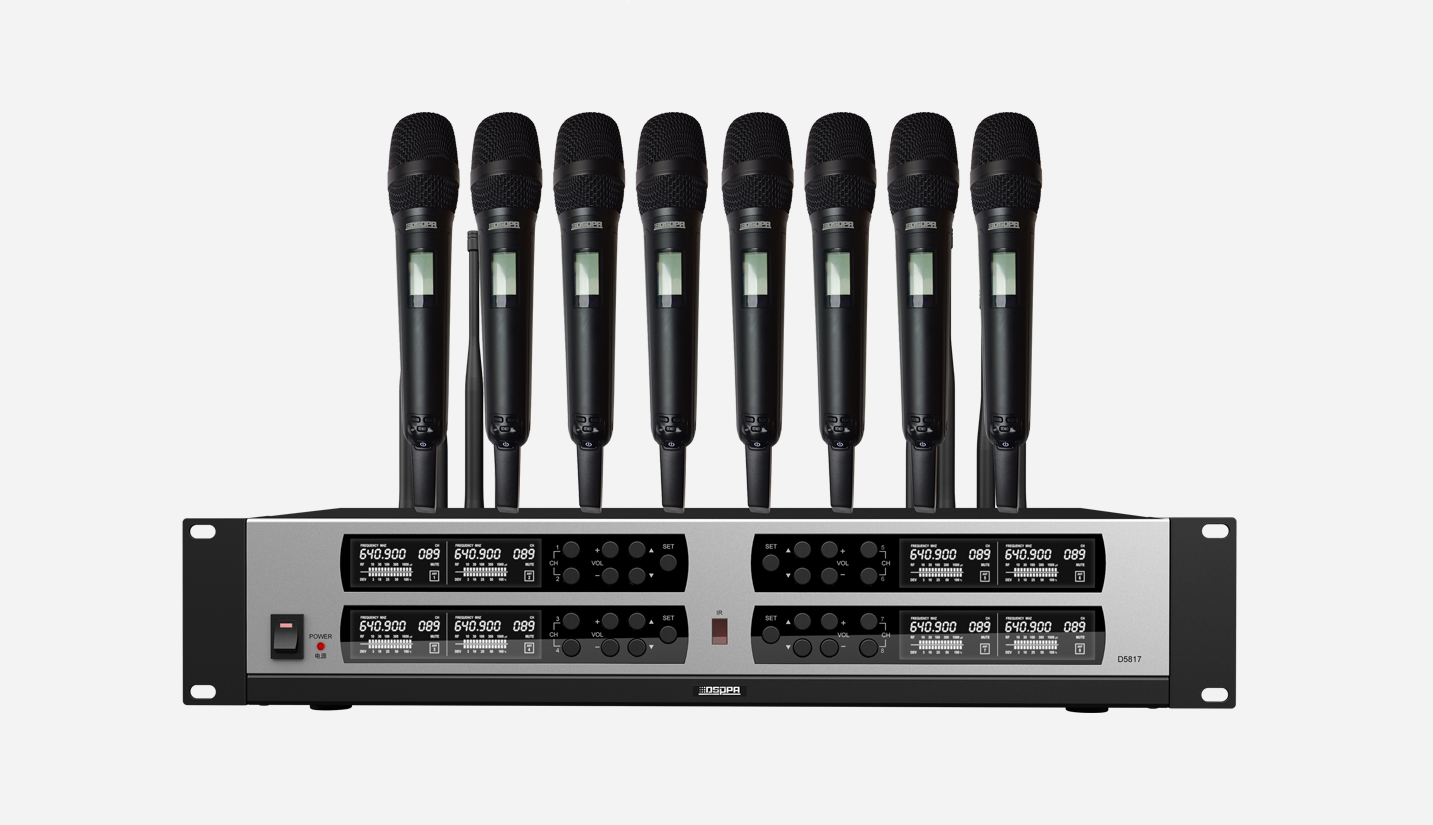

8 channels True Diversity microphone system, connect with 8 microphones
PLL digital automatic communication function
Adopt IR frequency pairing
With screen to display working status, like frequency, channel, squelch and electrical level
With volume control for each channel
With XLR interface for output
Frequency range: 632-695.25MHz
Working distance up to 200 meters
System Indicators | Parameters | |
Frequency Range | 632-695.25MHz | |
Modulation Mode | Wideband FM | |
Adjustable Range | 60MHz | |
Number of Channels | 200 | |
Channel Interval | 250KHz | |
Frequency Stability | Within ±0.005% | |
Dynamic Range | 88dB | |
Maximum Frequency Deviation | ±45KHz | |
Audio Response | 120Hz-16KHz (±3dB) | |
Comprehensive S/N Ratio | >73dB | |
Comprehensive Distortion | ≤1% | |
Operating Temperature | -10°C - +40°C | |
Effective Range | 150-200m (in open environment) | |
Package Dimensions (L×W×H) | 530×335×330mm | |
D5881/D5881L Gross Weight | 9kg | |
D5882/D5883/D5882L/D5883L Gross Weight | 7.4kg | |
D5884/D5884L/D5885L Gross Weight | 9.6kg | |
Receiver | Wireless Connector | BNC/50Ω |
Sensitivity | ≤-95dBm | |
Spurious Suppression | ≥75dB | |
Function Display Mode | Display screen | |
Operating Power | DC12V, 600mA | |
Package Dimensions (L×W×H) | 530×335×145mm | |
Machine Dimensions | 430×176×88mm | |
Gross Weight | 5.2kg | |
Net Weight | 3.3kg | |
