8 channels true diversity microphone receiver 8 collar mic
8 channels true diversity microphone receiver 8 collar mic
  • 8 channels true diversity microphone receiver 8 collar mic

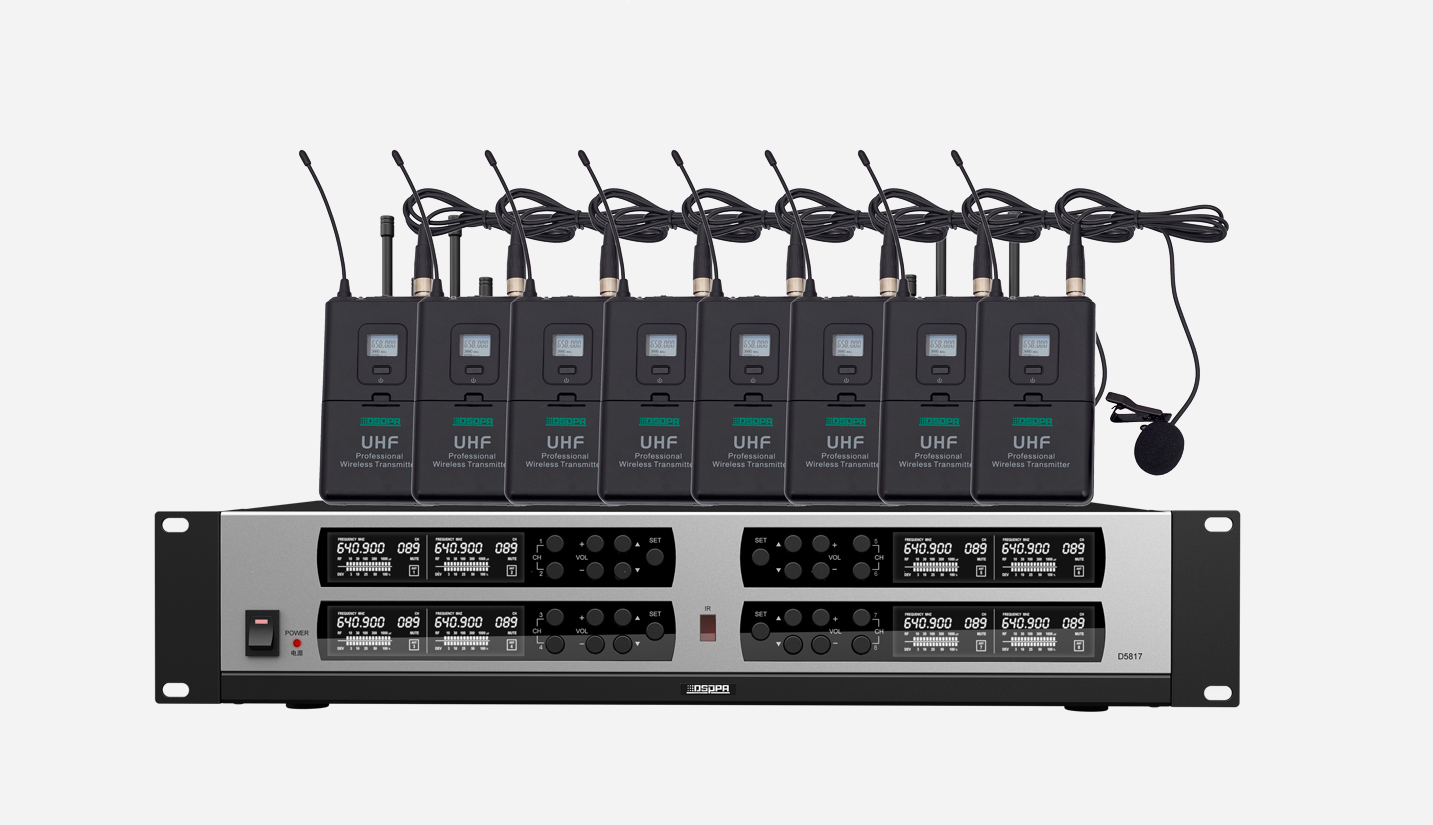

8 Channels True Diversity Microphone Receiver (8 Collar Mic) D5882

  • 8 channels True Diversity microphone system, connect with 8 microphones

  • PLL digital automatic communication function

  • Adopt IR frequency pairing

  • With screen to display working status, like frequency, channel, squelch and electrical level

  • With volume control for each channel

  • With XLR interface for output

  • Frequency range: 632-695.25MHz

  • Working distance up to 200 meters



Datasheet
Get Quotation
DETAILS
SPECS
8 Channels True Diversity Microphone Receiver (8 Collar Mic)
8 Channels True Diversity Microphone Receiver (8 Collar Mic)
8 Channels True Diversity Microphone Receiver (8 Collar Mic)
8 Channels True Diversity Microphone Receiver (8 Collar Mic)

Specifications of 8 Channels Wireless Microphone System Receiver

System Indicators

Parameters

Frequency Range

632-695.25MHz

Modulation Mode

Wideband FM

Adjustable Range

60MHz

Number of Channels

200

Channel Interval

250KHz

Frequency Stability

Within ±0.005%

Dynamic Range

88dB

Maximum Frequency Deviation

±45KHz

Audio Response

120Hz-16KHz (±3dB)

Comprehensive S/N Ratio

>73dB

Comprehensive Distortion

≤1%

Operating Temperature

-10°C - +40°C

Effective Range

150-200m (in open environment)

Package Dimensions (L×W×H)

530×335×330mm

D5881/D5881L Gross Weight

9kg

D5882/D5883/D5882L/D5883L Gross Weight

7.4kg

D5884/D5884L/D5885L Gross Weight

9.6kg

Receiver

Wireless Connector

BNC/50Ω

Sensitivity

≤-95dBm

Spurious Suppression

≥75dB

Function Display Mode

Display screen

Operating Power

DC12V, 600mA

Package Dimensions (L×W×H)

530×335×145mm

Machine Dimensions

430×176×88mm

Gross Weight

5.2kg

Net Weight

3.3kg
