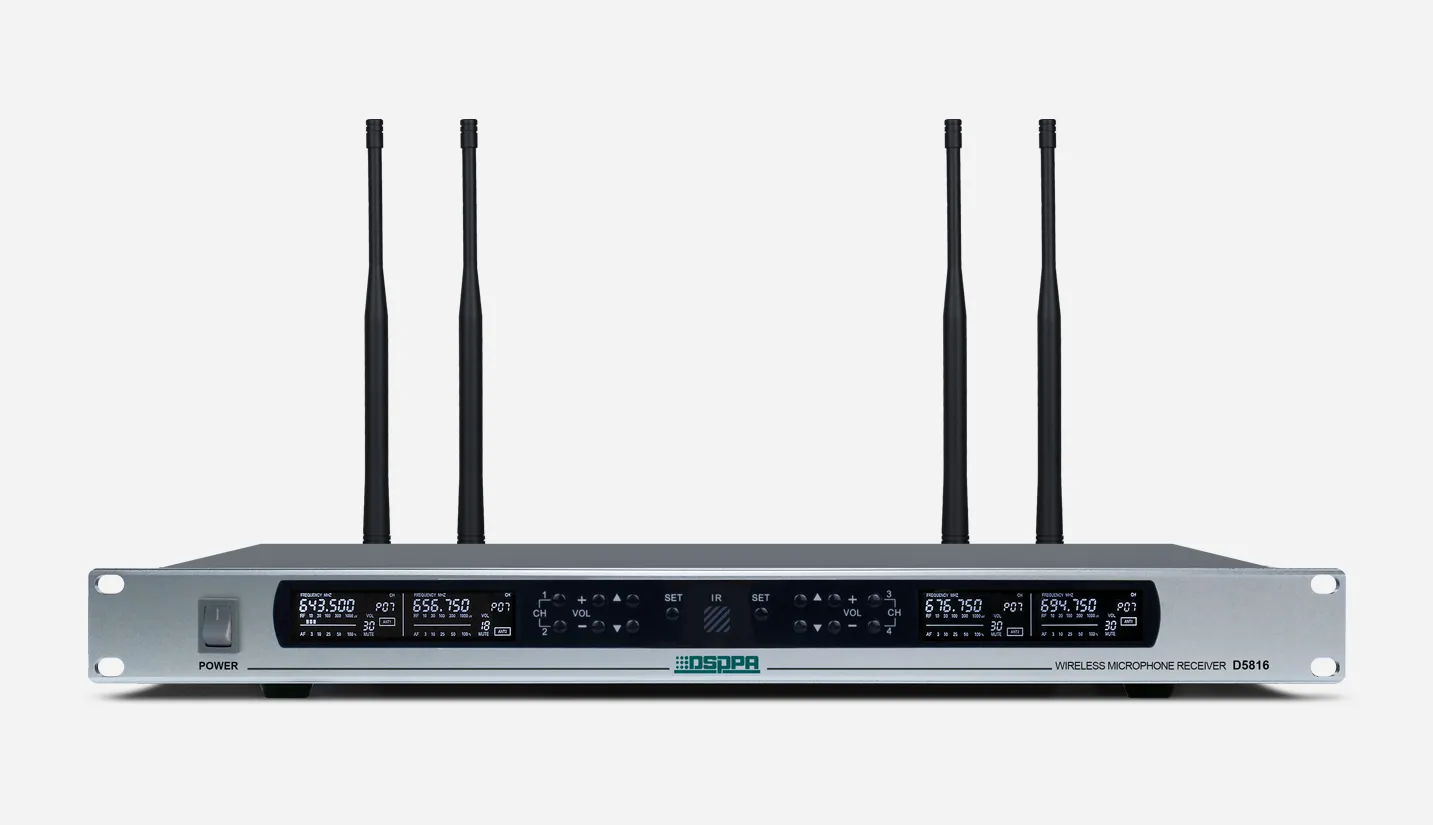

4 Channels Wireless Microphone System Receiver D5816

  • 4-channel PLL design.

  • UHF200 channel PLL digital lock automatic communication function.

  • Adopt IR frequency pairing.

  • With display screen (to display frequency, channel, squelch, level, etc.).

  • With volume control for each channel.

  • AF output (using “XLR” sockets for separate output and mixed output).


Datasheet
Get Quotation
DETAILS
SPECS

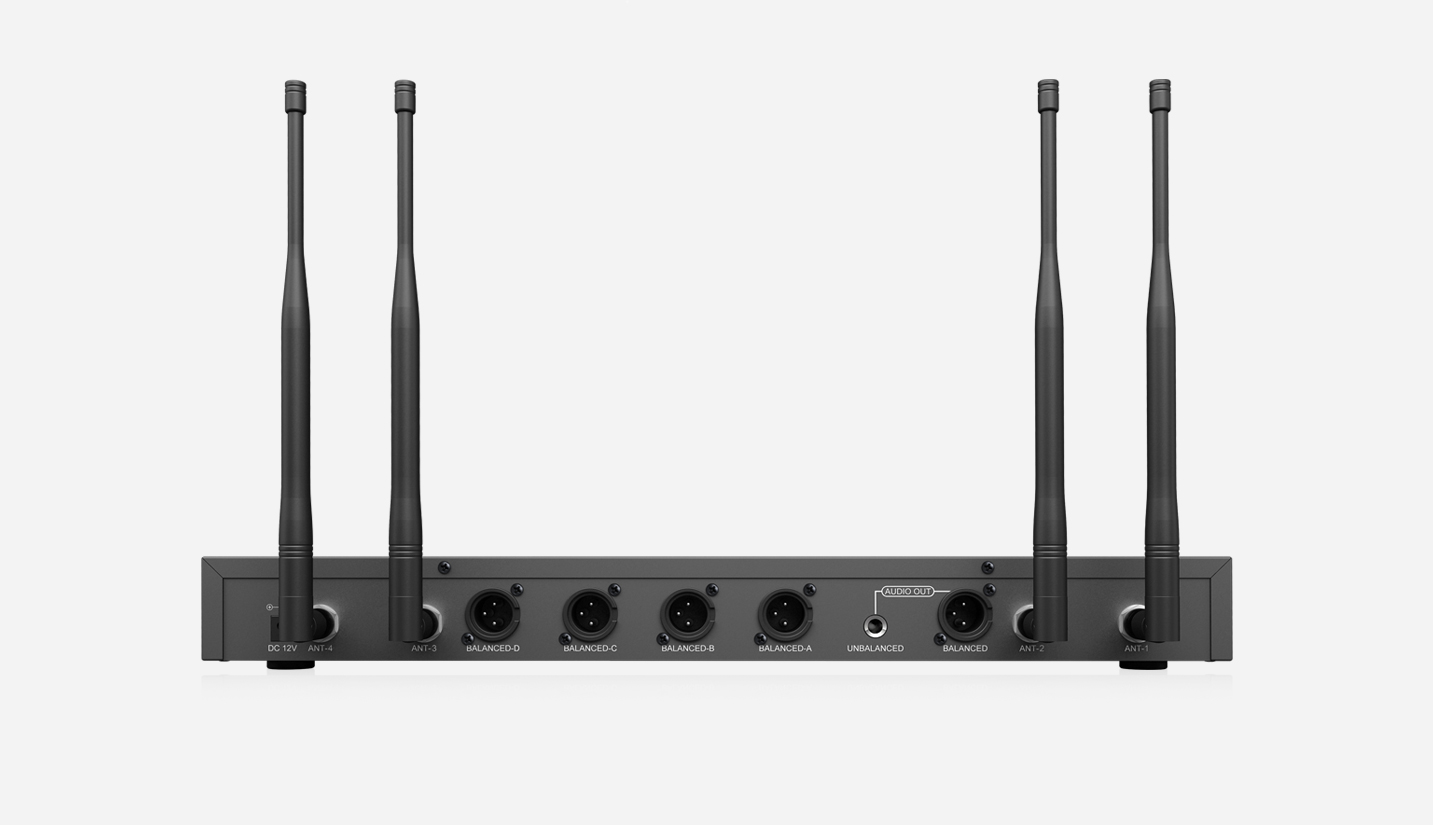

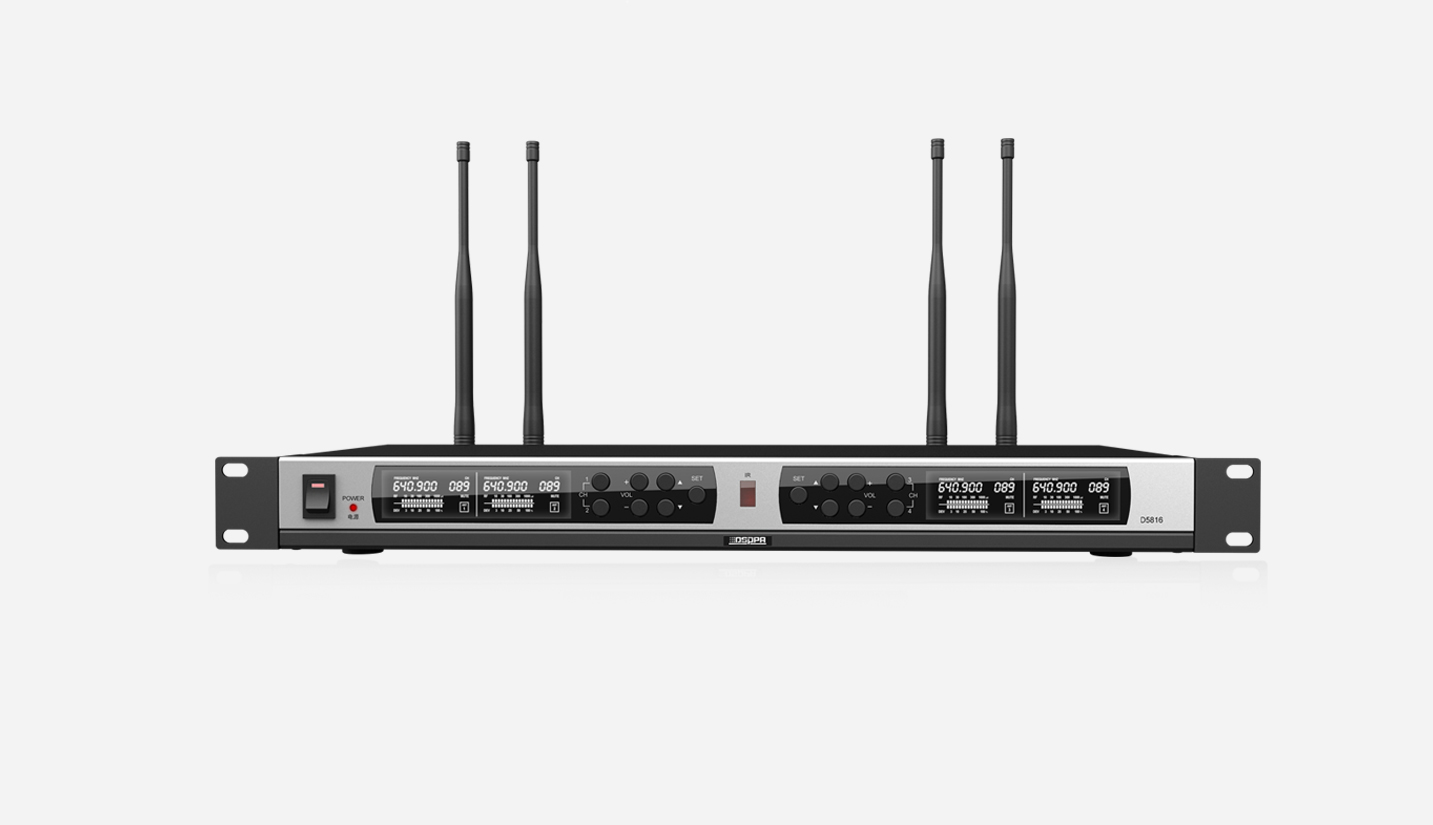

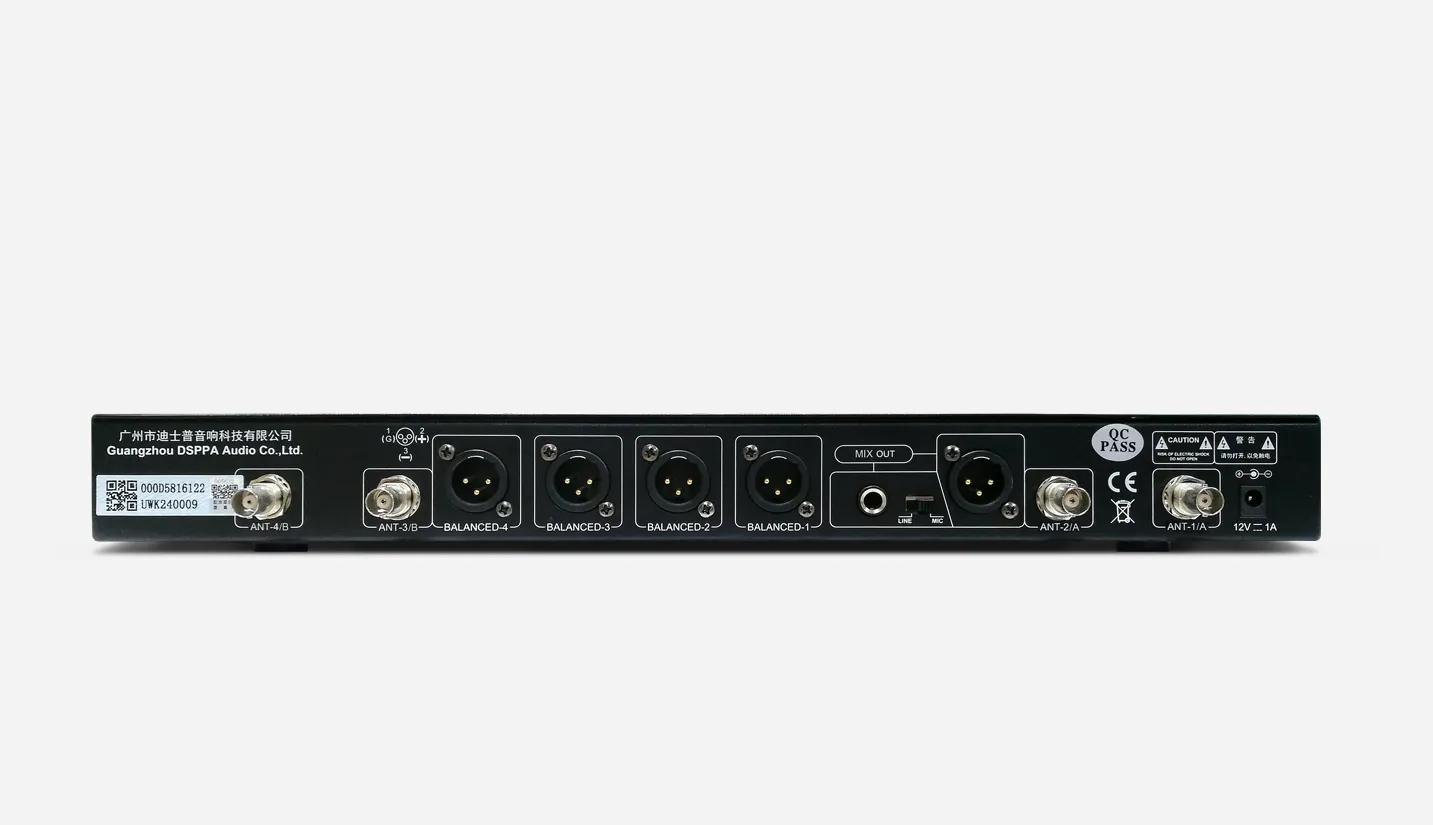

4 Channels Wireless Microphone System Receiver
4 Channels Wireless Microphone System Receiver
4 Channels Wireless Microphone System Receiver
4 Channels Wireless Microphone System Receiver

Specifications of 4 Channels Wireless Microphone System Receiver

System Indicators

Parameters

Frequency Range

632-695.25MHz

Modulation Mode

Wideband FM

Adjustable Range

60MHz

Number of Channels

200

Channel Interval

250KHz

Frequency Stability

Within ±0.005%

Dynamic Range

88dB

Maximum Frequency Deviation

±45KHz

Audio Response

120Hz-16KHz (±3dB)

Comprehensive S/N Ratio

>73dB

Comprehensive Distortion

≤1%

Operating Temperature

-10°C - +40°C

Effective Range

150-200m (in open environment)

Package Dimensions (L×W×H)

530×335×220mm

D5841/D5841L Gross Weight

6.2kg

D5842/D5843/D5842L/D5843L Gross Weight

5.2kg

D5844/D5844L/D5845L Gross Weight

6.5kg

Receiver

Wireless Connector

BNC/50Ω

Sensitivity

≤-95dBm

Spurious Suppression

≥75dB

Function Display Mode

Display screen

Operating Power

DC12V, 600mA

Package Dimensions (L×W×H)

530×335×100mm

Machine Dimensions

430×176×44mm

Gross Weight

3.9kg

Net Weight

2.3kg
