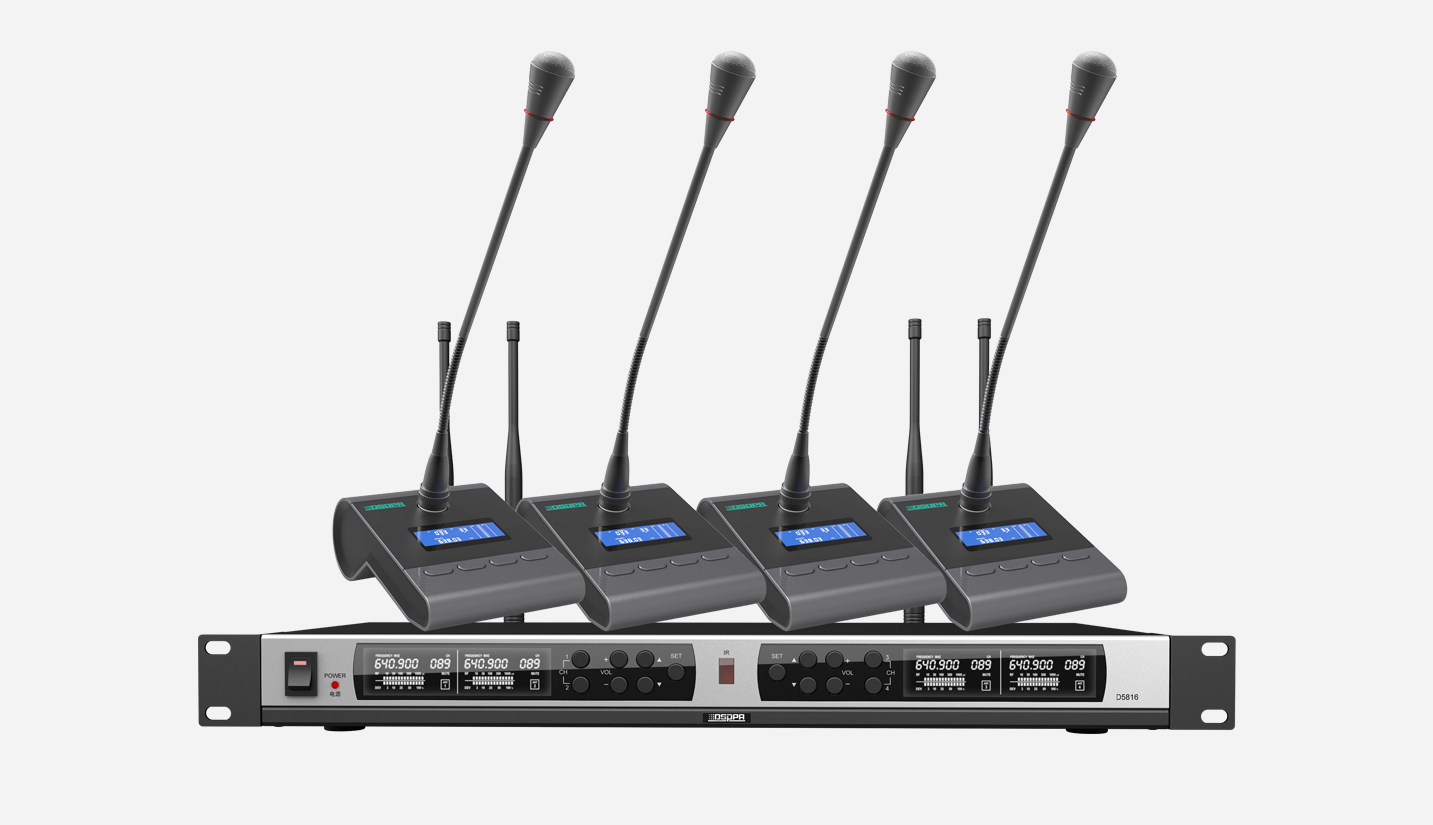

4 Channels True Diversity Microphone Receiver (4 Desktop Mic) D5844

  • 4 channels True Diversity microphone system,

  • connect with 4 microphones

  • PLL digital automatic communication function

  • Adopt IR frequency pairing

  • With screen to display working status, like frequency,

  • channel, squelch and electrical level

  • With volume control for each channel

  • With XLR interface for output

  • Frequency range: 632-695.25MHz

  • Working distance up to 200 meters



Datasheet
Get Quotation
DETAILS
SPECS
4 Channels True Diversity Microphone Receiver (4 Desktop Mic)
4 Channels True Diversity Microphone Receiver (4 Desktop Mic)
4 Channels True Diversity Microphone Receiver (4 Desktop Mic)
4 Channels True Diversity Microphone Receiver (4 Desktop Mic)

Specifications of 4 Channels Wireless Microphone System Receiver

System Indicators

Parameters

Frequency Range

632-695.25MHz

Modulation Mode

Wideband FM

Adjustable Range

60MHz

Number of Channels

200

Channel Interval

250KHz

Frequency Stability

Within ±0.005%

Dynamic Range

88dB

Maximum Frequency Deviation

±45KHz

Audio Response

120Hz-16KHz (±3dB)

Comprehensive S/N Ratio

>73dB

Comprehensive Distortion

≤1%

Operating Temperature

-10°C - +40°C

Effective Range

150-200m (in open environment)

Package Dimensions (L×W×H)

530×335×220mm

D5841/D5841L Gross Weight

6.2kg

D5842/D5843/D5842L/D5843L Gross Weight

5.2kg

D5844/D5844L/D5845L Gross Weight

6.5kg

Receiver

Wireless Connector

BNC/50Ω

Sensitivity

≤-95dBm

Spurious Suppression

≥75dB

Function Display Mode

Display screen

Operating Power

DC12V, 600mA

Package Dimensions (L×W×H)

530×335×100mm

Machine Dimensions

430×176×44mm

Gross Weight

3.9kg

Net Weight

2.3kg
