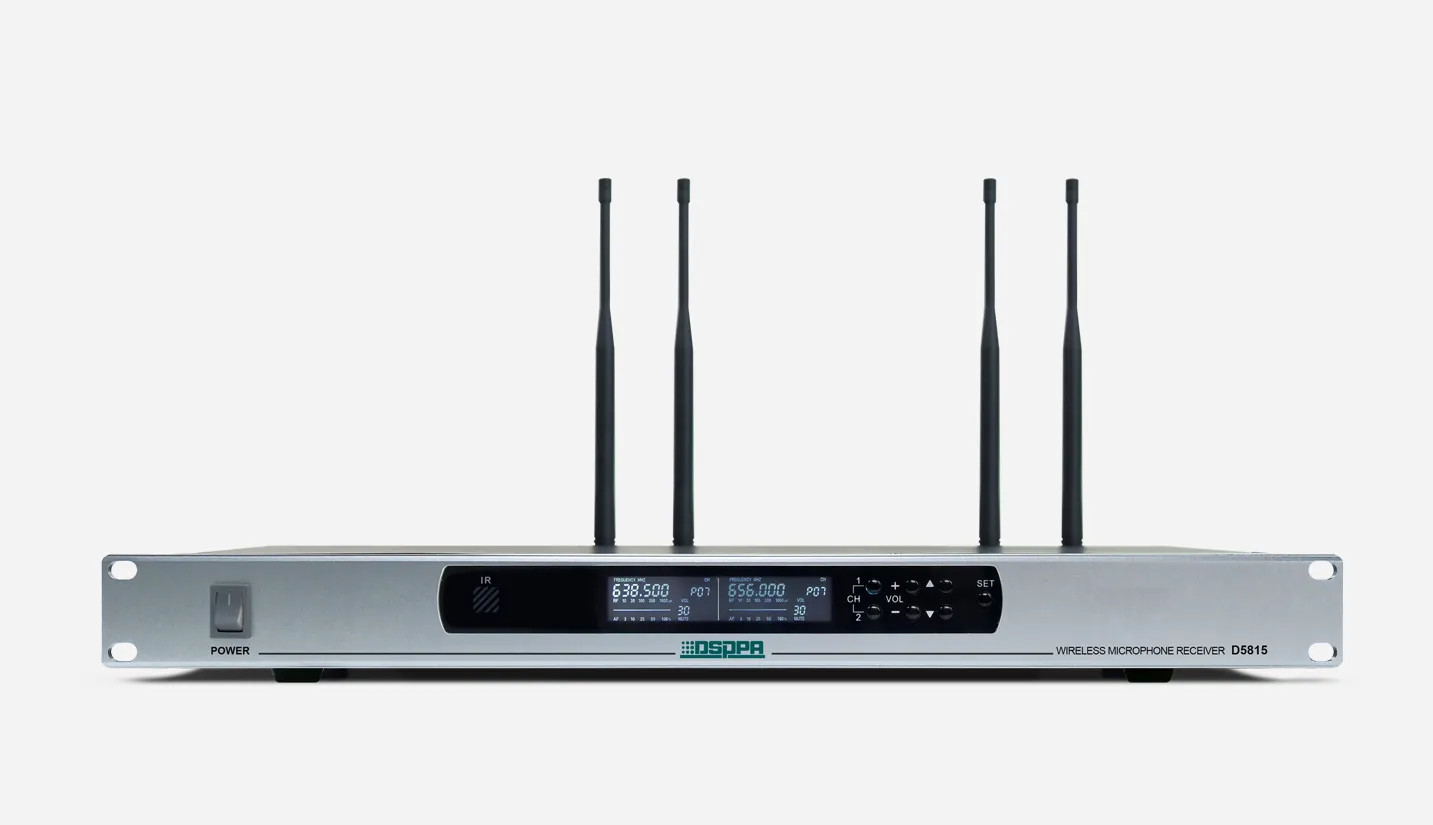

Dual-channel PLL design.
UHF200 channel PLL digital lock automatic communication function.
Adopt IR frequency pairing.
With display screen (to display frequency, channel, squelch, level, etc.).
With volume control for each channel.

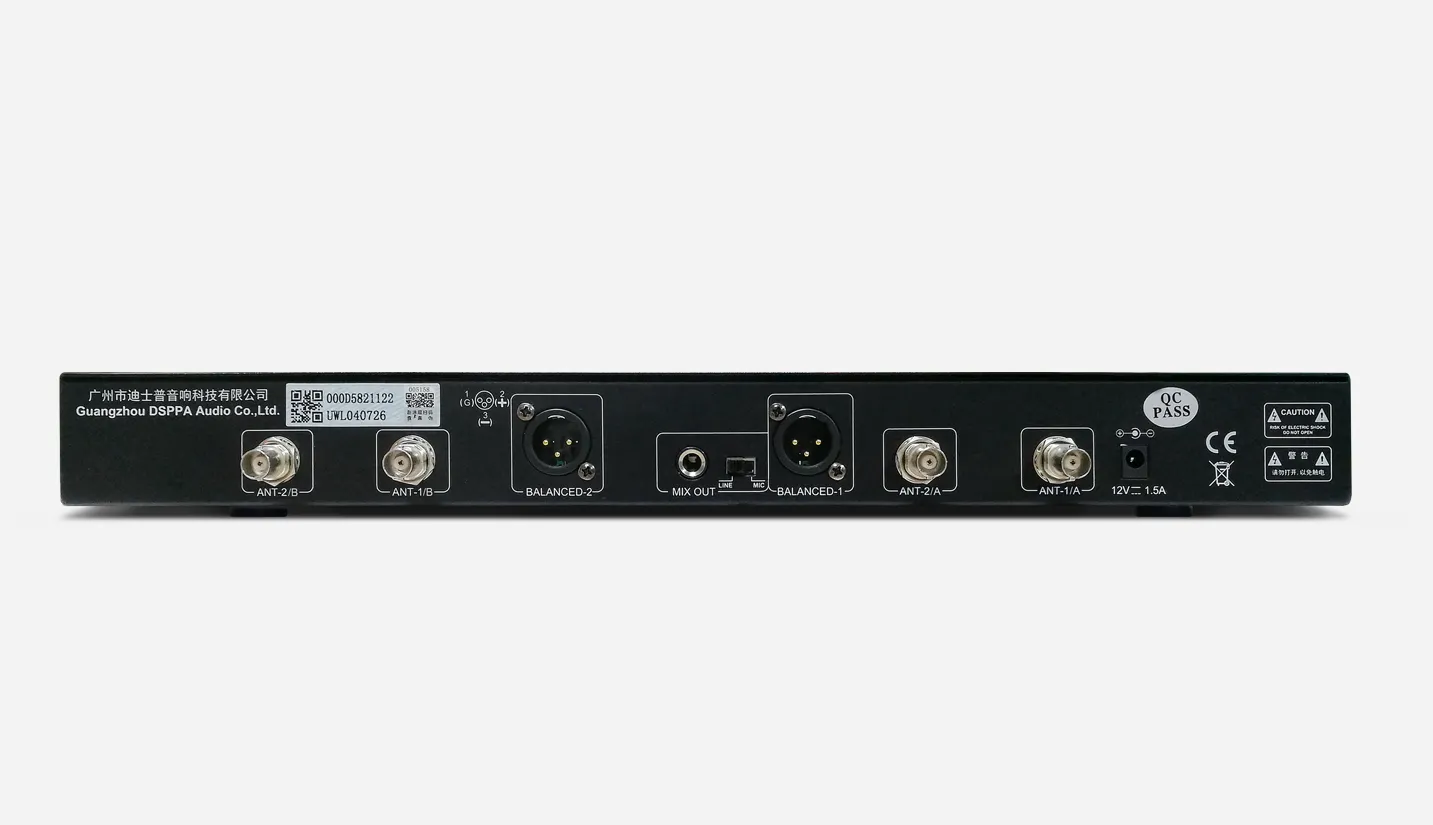

AF output (using “XLR” sockets for separate output and mixed output).
System Index | Parameters | |
Frequency Range | 632-661.25MHz | |
Number of Channels | 100 | |
Channel Interval | 250KHz | |
Dynamic Range | 82dB | |
Maximum Frequency Deviation | ±45KHz | |
Audio Frequency Response | 120Hz-15KHz (±3dB) | |
SNR | >70dB | |
Distortion | ≤1% | |
Working Temperature | -10℃－+40℃ | |
Effective Range | Max 300m (in open environment) | |
Package Dimensions (L×W×H) | 530×335×220mm | |
D5821 Gross Weight | 5.2kg | |
D5822/D5823 Gross Weight | 4.6kg | |
D5824 Gross Weight | 5.3kg | |
Receiver | Wireless Interface | BNC/50Ω |
Sensitivity | ≤-95dBm | |
Display Method | Display Screen | |
Working Power | DC12V ,600mA | |
Package Dimensions (L×W×H) | 530×335×100mm | |
Machine Dimensions | 430×176×44mm | |
Gross Weight | 3.9kg | |
Net Weight | 2.3kg | |
Transmitter | Antenna Method | 1/4 wave whip antenna for the waistband transmitter, and built-in onboard antenna for the handheld microphone. |
Output Power | High power 14dBm; low power 6dBm | |
Spur Suppression | -60dB | |
Power Supply | 2 AA 1.5V alkaline batteries | |
Endurance | More than 10 hours at 14dBm; more than 15 hours at 6dBm. | |
Desktop MIC Rod Length | 420mm | |
Display Method | Display Screen | |
Handheld MIC Dimensions (Maximum Diameter × Length) | ∅50×265mm (Handheld part diameter ∅34~38mm) | |
Waistband Transmitter Dimensions | 110×64×25mm (excluding antenna length, 80mm more if included) | |
Desktop MIC Dimensions | 151×100×55mm | |
Net Weight of Desktop MIC | 0.45kg | |
Net Weight of Handheld MIC | 0.45kg | |
Net Weight of Waistband Transmitter | 0.1kg | |
