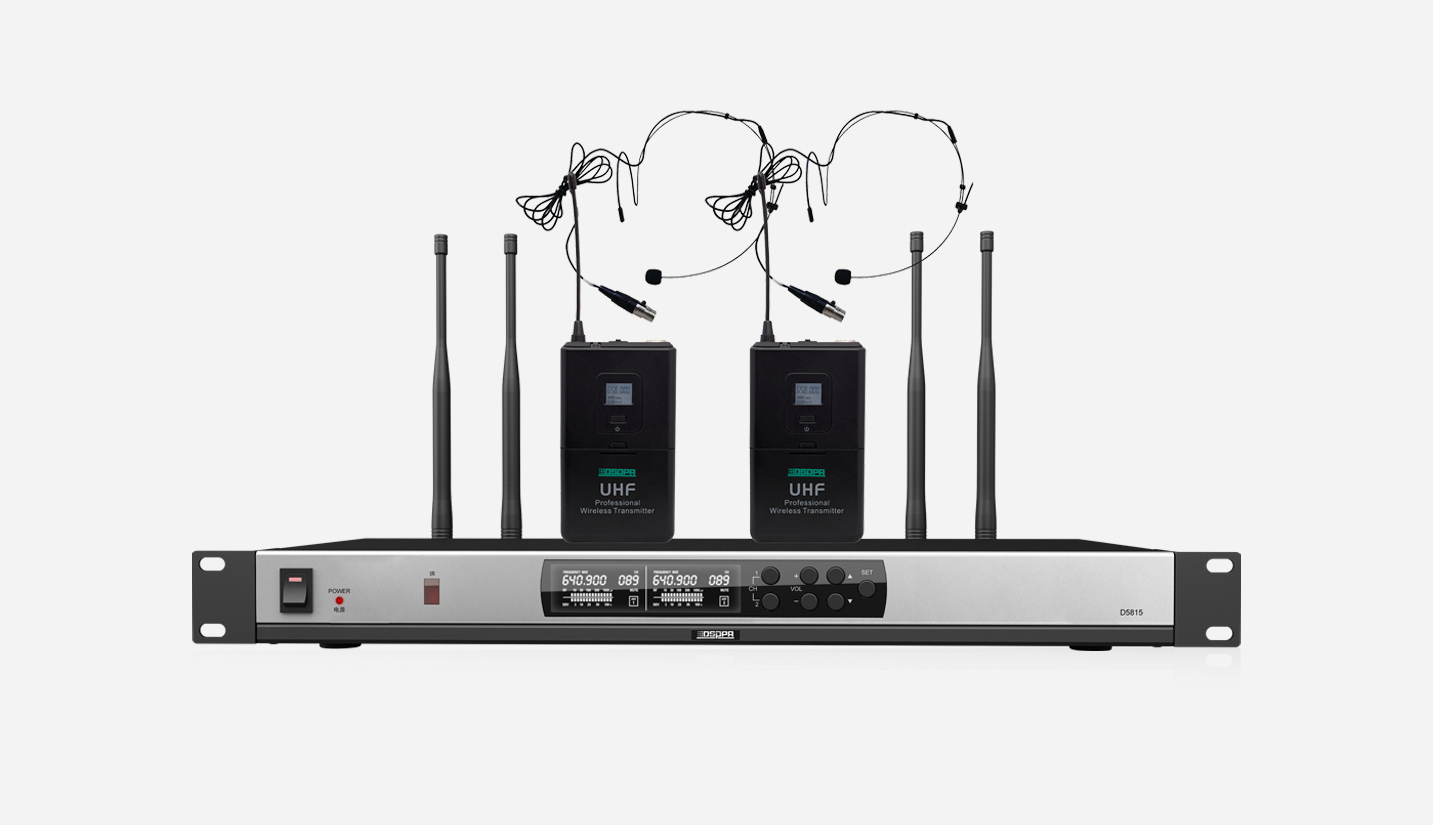

2 channels true diversity microphone receiver 2 headset mic 1
2 channels true diversity microphone receiver 2 headset mic 1
  • 2 channels true diversity microphone receiver 2 headset mic 1

2 Channels True Diversity Microphone Receiver (2 Headset Mic) D5823

  • 2 channels True Diversity microphone system,

  • connect with 2 microphones

  • PLL digital automatic communication function

  • Adopt IR frequency pairing

  • With screen to display working status, like frequency,

  • channel, squelch and electrical level

  • With volume control for each channel

  • With XLR interface for output

  • Frequency range: 632-661.25MHz

  • Working distance up to 300 meters



Datasheet
Get Quotation
DETAILS
SPECS
2 Channels True Diversity Microphone Receiver (2 Headset Mic)
2 Channels True Diversity Microphone Receiver (2 Headset Mic)
2 Channels True Diversity Microphone Receiver (2 Headset Mic)
2 Channels True Diversity Microphone Receiver (2 Headset Mic)

Specifications of 2 Channels Wireless Microphone System Receiver

System Indicators

Parameters

Frequency Range

632-661.25MHz

Number of Channels

100

Frequency Step

250KHz

Dynamic Range

82dB

Maximum Frequency Deviation

±45KHz

Audio Response

120Hz-15KHz (±3dB)

Comprehensive S/N Ratio

>70dB

Comprehensive Distortion

≤1%

Operating Temperature

-10°C - +40°C

Effective Range

Up to 300m (in open environment)

Package Dimensions (L×W×H)

530×335×330mm

D5821/D5821L Gross Weight

5.2kg

D5822/D5823/D5822L/D5823L Gross Weight

4.6kg

D5824/D5824L/D5825L Gross Weight

5.3kg

Receiver

Wireless Connector

BNC/50Ω

Sensitivity

≤-95dBm

Function Display Mode

Display screen

Operating Power

DC12V, 600mA

Package Dimensions (L×W×H)

530×335×100mm

Machine Dimensions

430×176×44mm

Gross Weight

3.9kg

Net Weight

2.3kg
