The translation unit can speak and listen at the same time
Each translation unit needs to set an ID number (01-16)
Supports 3.5 port earphones and headsets
Shuttle can adjust the monitoring volume and function Settings
5-inch TFT color screen, display unit ID number, network connection, listening volume, speaking time, etc.
Powered by DC 12V adapter or POE swithch

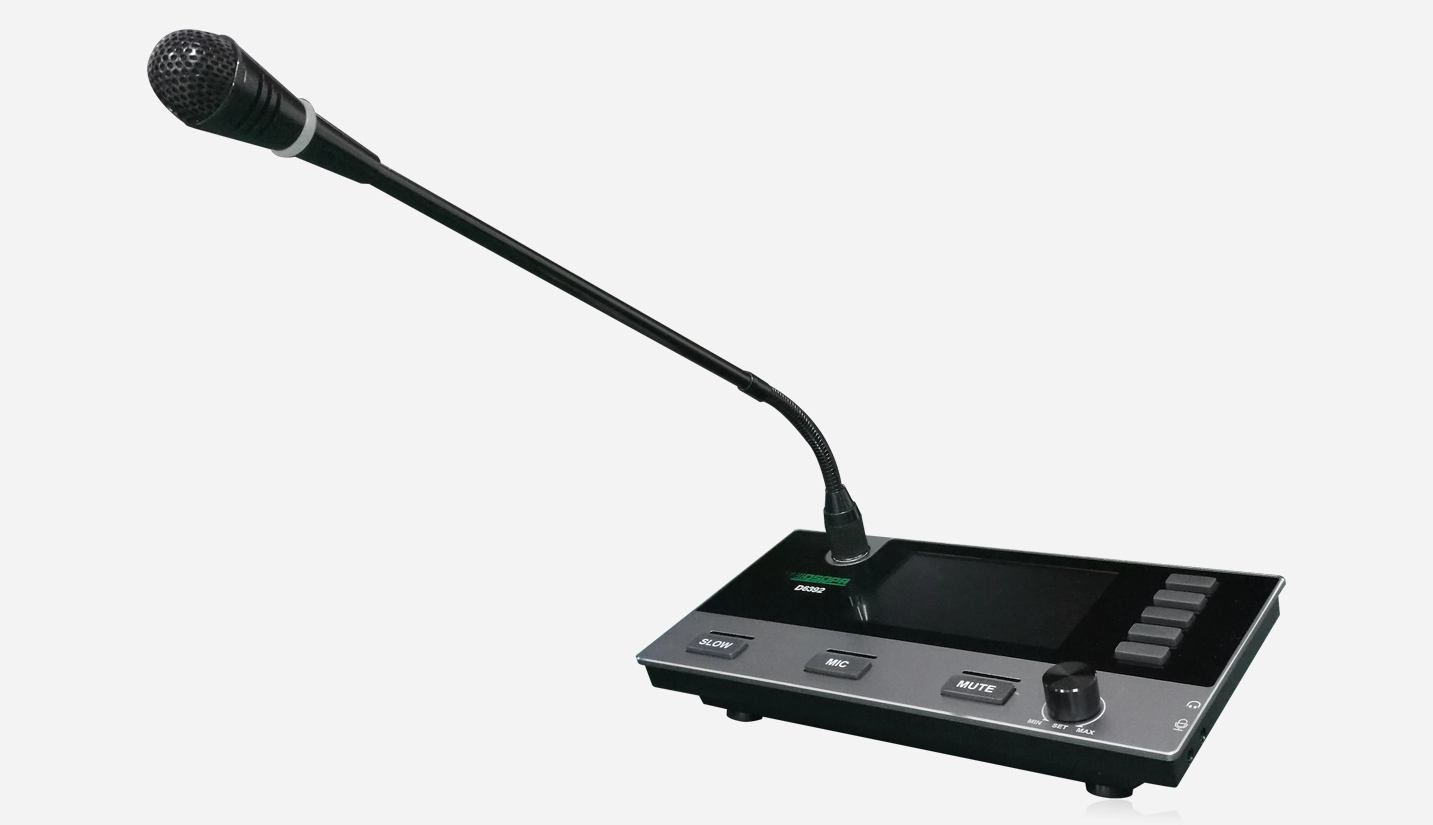

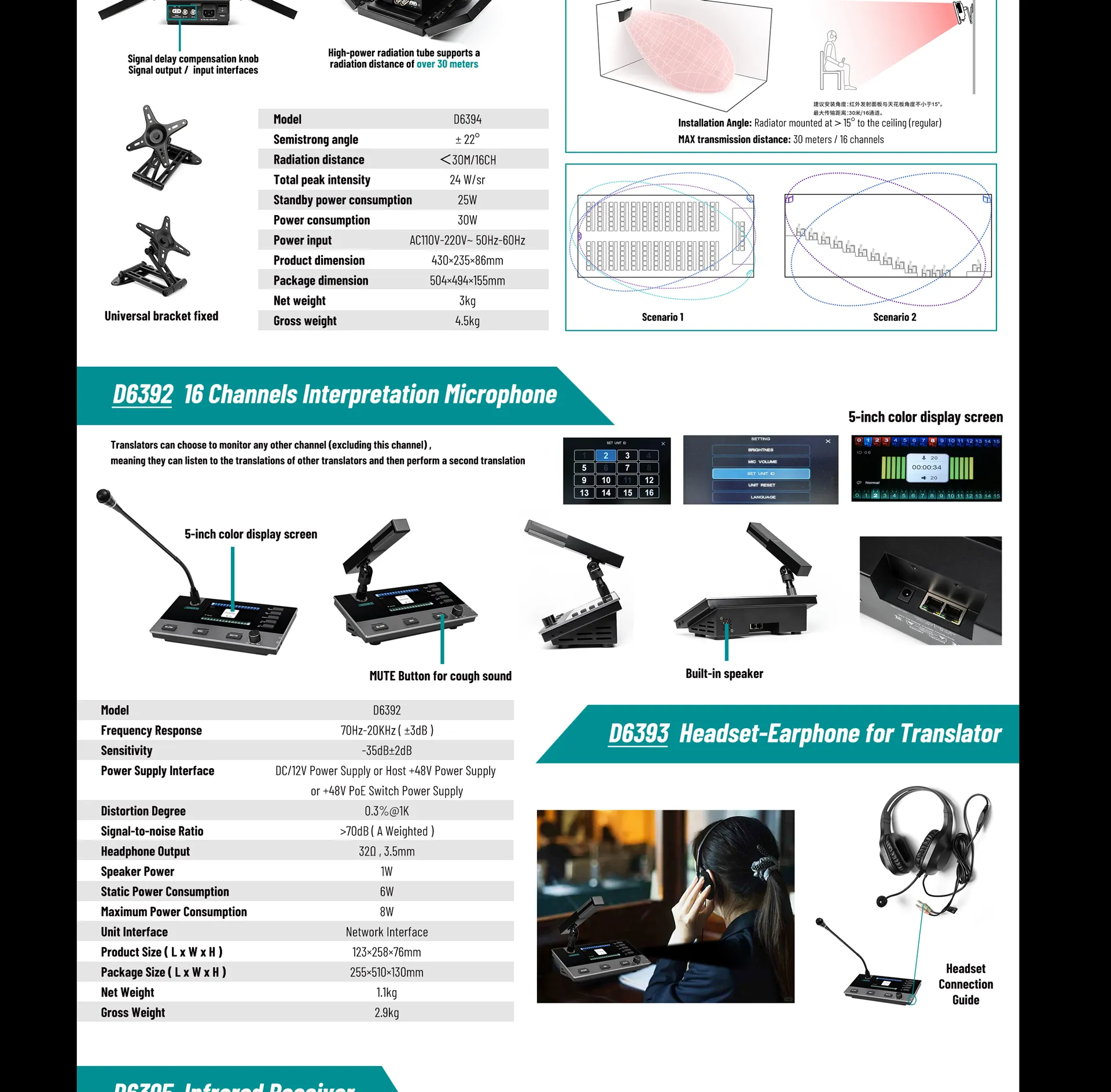

The D6392 is a 16 Channels Interpretation Microphone of Digital Infrared Interpretation System. It supports a fully digital design to ensure audio quality and strong confidentiality. It is used in International conference widely to provide convenience to the progress of communication.
Model | D6392 |
Frequency Response | 70Hz-20KHz ( ±3dB ) |
Sensitivity | -35dB±2dB |
Power Supply Interface | DC/12V Power Supply or Host +48V Power Supply or +48V PoE Switch Power Supply |
Distortion Degree | 0.3%@1K |
Signal-to-noise Ratio | >70dB ( A Weighted ) |
Headphone Output | 32Ω , 3.5mm |
Speaker Power | 1W |
Static Power Consumption | 6W |
Maximum Power Consumption | 8W |

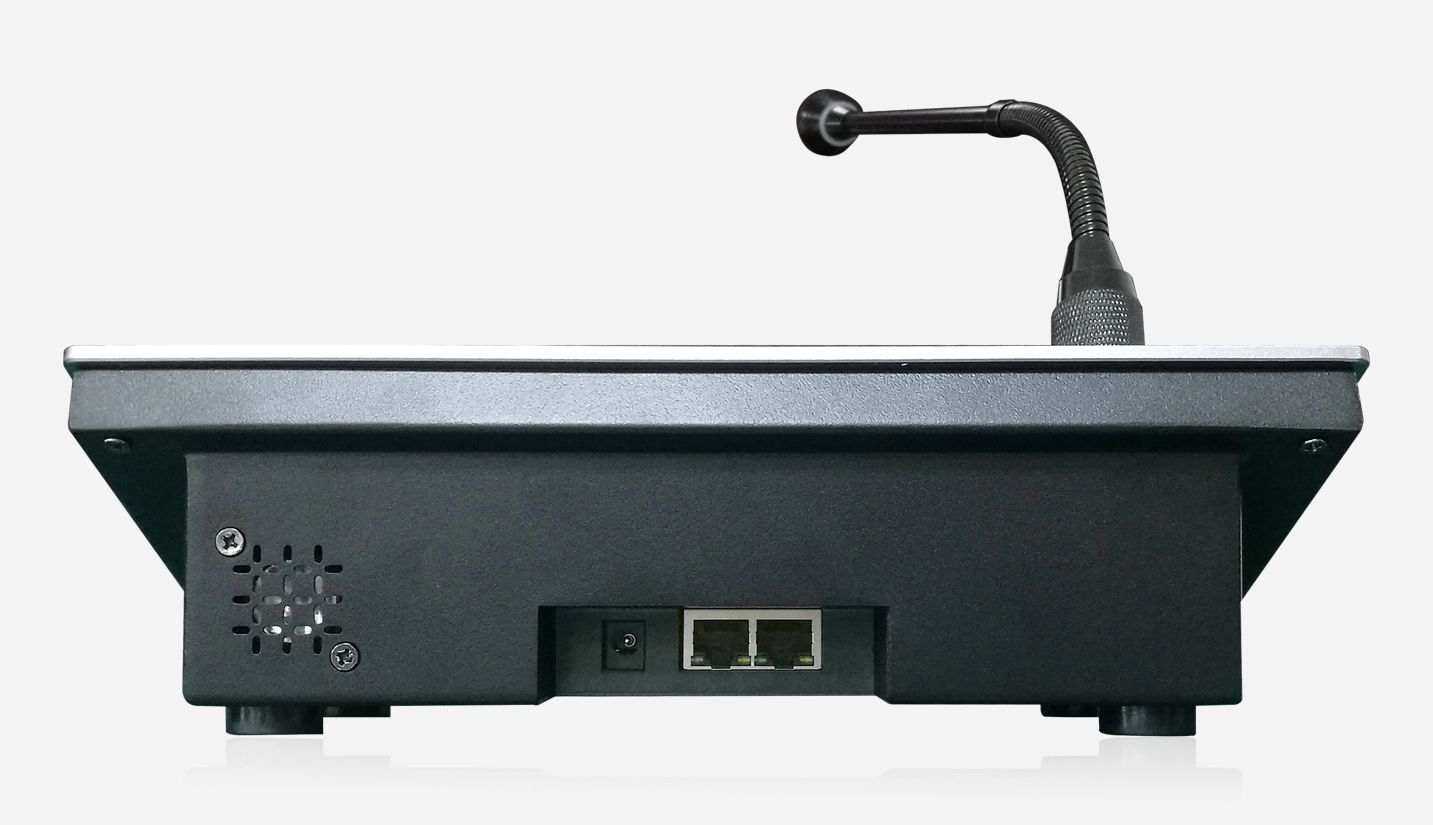

Unit Interface | Network Interface |
Product Size ( L x W x H ) | 123×258×76mm |
Package Size ( L x W x H ) | 255×510×130mm |
Net Weight | 1.1kg |
Gross Weight | 2.9kg |
