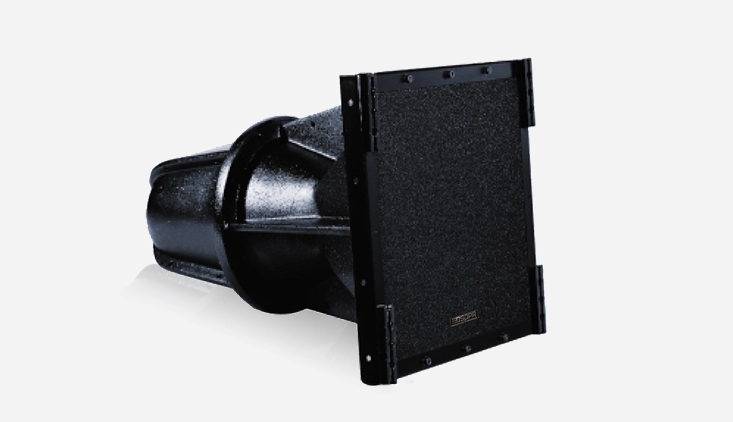

150w remote horn speaker 1
150w remote horn speaker 1
  • 150w remote horn speaker 1

8'' 150W Remote Horn Speaker D6077B

  • The case is made of fiberglass, waterproof and anti-UV, sturdy.

  • Computer-optimized design of coaxial point source

  • Clear sound, rich sound level, treble delicate;

  • Freq. Resp. (±3 dB):110 Hz - 18,000 Hz

  • Max. sound pressure level: 122dB±2dB

  • Rated Power Output at 150W


Datasheet
Get Quotation
DETAILS
SPECS
8'' 150W Remote Horn Speaker

Specifications of 8'' 150W Remote Horn Speaker


Model

D6077B

Unit

8" Bass×1, 1.35" Treble×1

Freq. Resp. (-10 dB)

110Hz- 18000Hz

Sensitivity (1m, 1W)

100dB±2dB

MAX. SPL.

122dB±2dB

Input Impedance

8Ω

Rated Power

150W

Directivity (H×V)

90°× 60°

Dimension (H×W×D)

360×360×455mm

Weight

12.5kg
