Support 8-channel XLR mono input and 2-channel stereo input.
Each channel with 3-band EQ adjustment, MUTE switch, and PFL switch.
Built-in phantom power 48V for microphone input.
Built-in 24 DSP digital effect processor.
Built-in USB port for recording and music playing.
With an LED screen for status display.
It can provide multiple input channels and mix these signals into stereo and grouping output signals
Due to the high quality of the built-in digital effects, it can directly provide a wide range of impact effects. It also comes with a SEND socket which can be used to connect to an external effector.
The monitor is equipped with the convenient phones socket. This socket can be used to monitor the main stereo output signal, PEL signal or 1 to 2 group signals.
The mixing console is also equipped with an AUX SEND socket and a single RETURN socket. AUX communication bus signal can send the signal to the external effector and the monitoring system.
The virtual power supply can provide convenience for the connection of the capacitor microphone which requires the external power supply.
The monaural input channel is equipped with the XLR microphone input socket and the TRS headphone linear socket. The stereo input channels are equipped with TRS linear input sockets and RCA linear input socket. Because of these wide varieties of sockets, this mixing console can be connected to many different types of sound source devices, such as microphones, linear level devices stereo output synthesizers and so on.

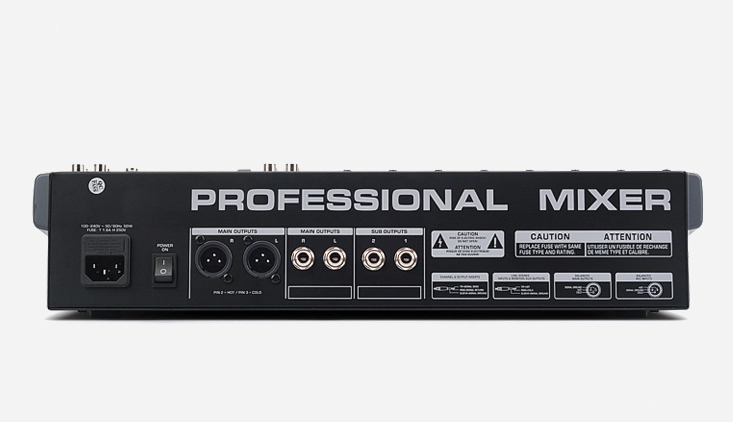

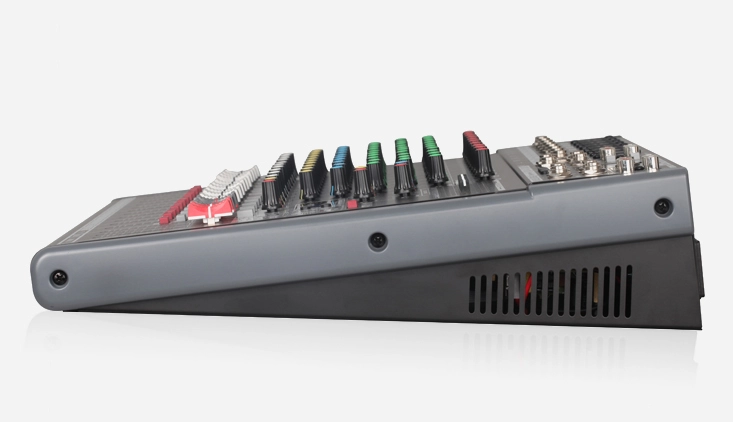

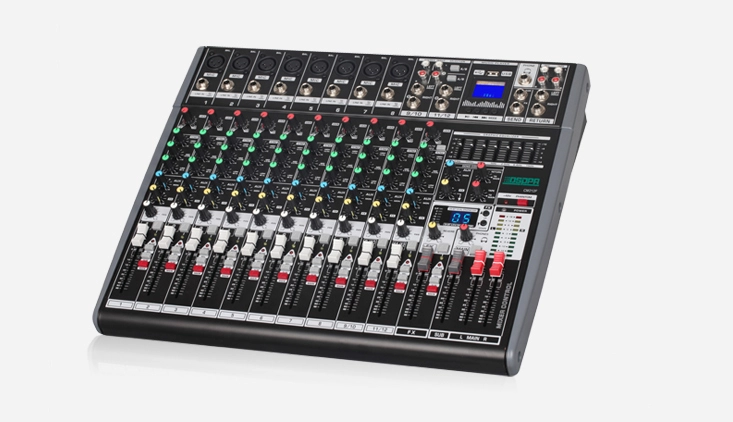

The CM212F 12-channel professional mixing console is a high-performance mixer designed to meet the needs of audio professionals, music producers and performers. There are 8-channel XLR mono input optional and 2-channel stereo input. The series of devices features 48V phantom power, a 24 DSP effects processor, USB recording, and an LED status screen, offering precision with 3-band EQ, mute and PFL switches on each channel, which achieves a new level of audio mixing, providing excellent sound quality and flexible control.
Model | CM212F |
Frequency Characteristics (MAIN OUT) | 20Hz-20kHz+1dB, -3dB@+4dBu, 600Ω (With gain control at the minimum level) |
Total Harmonic Distortion (MAIN OUT) | 0.1%(THD+N)@+4dBu, 20Hz-20kHz, 600Ω (With gain control at the maximum level) |
Hum & Noise | -128dBu Equivalent input noise (Channel 1-8) |
-100dBu Residual output noise (ST OUT) | |
-88dBu (92dB S/N) ST & GROUP main attenuator at nominal level; set all channel sending switches to OFF. | |
-81dBu (85dB S/N) AUX & EFFECT main control at nominal level; all channel mixer controls at the minimum level. | |
-64dBu (68dB S/N) ST & GROUP main attenuator and a channel attenuator at nominal level. (Channel 1-8) | |
Crosstalk (1kHz) | -70dB, among each input channel -70dB, among input / output channel (CH INPUT) |
Channel Input Equalization: ±15dB | HIGH 10kHz slope; MID 2.5kHz slope; LOW 100Hz slope |
Maximum Amplitude of Variation of Graphical Equalizer ±12dB | Seven bands (125, 250, 500, 1k, 2k, 4k, 8k) |
Internal Digital Effect | 16 types of programs, parameter control |
Mono / Stereo Input Peak Indicator | In each channel: When the post EQ signal (In ST sound channel, when the post EQ signal or post microphone amplifier signal) enters the range of the cutoff level value of 3dB, the indicator will be red. |
Virtual DC+48V Power (Balanced Input) | When the virtual +48V switch is turned on, the virtual power will be provided. |
Power Consumption | 51W |
Package Dimensions (mm) | 440×360×90 |
Product Dimensions (mm) | 485×163×440 |
Gross Weight | 4.5kg |
Net Weight | 5.5kg |
